Electronics
Depthsounder – Simard Speed & Depth
Log-speedometer – Raymarine ST-70 Multi Function integrated w/B&G instruments
Plotter – Zeus 9
Autopilot – Simrad AC12 W/RC42 rate Compass
Compass – Ritchie Venture SR-2 Bulkhead Mt. Compass
GPS – Zeus 9
VHF – ICOM M502 w/DSC
Radar – Simard 4G Broadband Radar
Radio – SOnic Hub Marine Audio Server
Sails
Fully battened mainsail
Furling genoa
Rigging
Tiller
Spinnaker pole
Inside Equipment
Electric bilge pump
Manual bilge pump
Battery charger – Xantrex TC 20+
Hot water – Seaward 6 gal new 2011
Sea water pump
Oven – Force 10 Propane Stove & Oven
Marine head – Groco HF new-2011
Refrigerator – Technautics Cold Plate System
Electrical Equipment
Shore power inlet
Electrical Circuit: 110V
Outside Equipment/Extras
Swimming ladder
Cockpit shower
Outboard engine brackets
Covers
Bimini Top
Mainsail cover
Spray hood
Lazyjacks
Sail Area
IJPE : 485.67 sq ft
I : 38.67 ft
J : 14.58 ft
P : 32.50 ft
E : 12.50 ft
Manufacturer Provided Description
The Pacific Seacraft 31 is a new cruising design from the board of renowned naval architect W.I.B. Crealock. She was born of the same wisdom that conceived the immensely successful Crealock 37 and 34. The 31’s hull configuration, rig and underbody are very similar to her two forebears, yet she boasts a proportionately broader beam and longer waterline. The result is outstanding speed, comfortable motion, and superb ease of handling. The Pacific Seacraft 31 is designed and built to cross any ocean in comfort and confidence. An impressive bluewater cruiser, she embodies all the Pacific Seacraft trademarks of high quality and fine detail: solid bronze seacocks and portholes, massive anchoring systems, impeccable joiner work, superb engine access and much more. The interior of the Pacific Seacraft 31 is fresh, contemporary and versatile. It provides for amazing openness, with lowered bulkheads and ten oversized bronze ports, phenomenal stowage areas, and even an extra-wide bridgedeck that makes it easy to enter the cabin.
Factory Equipment List
Pacific Seacraft 31 Voyagemaker Specifications – Standard Equipment Construction – Hand laminated hull and deck. First hull laminate uses vinylester resin for superior blister resistance. Standard molded-in gel coat color is Antique White. Contrasting boot and sheer stripes. – Stainless steel chainplates and backing plates are caulked and thru-bolted to the hull. Solid teak rubstrake on hull. – Bottom paint includes solvent wash, three layers of epoxy barrier coat and two coats of antifouling bottom paint. – Rudder supported by high strength manganese bronze gudgeon. – Ballast is 4,400 pound (2.0 mt.) solid lead casting with stainless steel keel bolts. Keel to hull joint bedded in epoxy. – Interior is structural fiberglass, plywood & gel coat interior module bonded into hull with fiberglass mat and woven roving. Primary bulkheads bonded into hull & deck w-fiberglass then bolted in place. – Underside of deck, lockers and entire bilge are gel coated to prevent mildew and to facilitate cleaning. – Deck to hull connection: Mating hull & deck flanges bedded in polyurethane adhesive and fastened with stainless steel thru-bolts. – Deck has molded-in nonskid pattern. Deck Equipment – All cleats, winches, turning blocks, pulpits & stanchions have backing plates. Backing plates & hardware caulked with polyurethane. – 30″ high stainless steel double rail bow and stern pulpits with running lights and double lifeline stanchions. – Stainless steel stem fitting and bow platform with two anchor rollers, quick-release locking pins and bobstay. – Divided bow chain locker for two anchor rodes. – Deep bulwarks with heavy teak cap rail, hand fitted with butterfly joints. – Chrome plated bronze deck hardware includes: Two Lewmar #44 CST two speed self-tailing genoa sheet winches. Two Lewmar #16 CST self-tailing jib and main halyard winches. Six 7″ x 12″ and four 4″ x 7″ opening ports with screens. Two 12″ bow mooring cleats with 3″ hawse pipes. Two 10″ open spring cleats amidships. Two 10″ open stern mooring cleats. One anchor deck pipe on foredeck, and one aft. All hinges, hasps, jam cleats, chain pipes, deck fills, etc. – Four teak loop handrails on cabin house. – Large Bomar two way opening hatch. – Designated cleats for each winch. – Two dorades-stainless steel Vetus ventilators with PVC cowls. – Fiberglass seahood, teak companionway sliding hatch and drop boards. – Ball bearing mainsheet traveler mounted on bridge deck in cockpit. – Outboard genoa track with cars. – Stainless steel boarding gates, port and starboard. – Stern chain locker to port with deck pipe and anchor roller. – Stern mounted s.s. swim ladder with teak treads and boarding gate. Interior – White Formica cabin house sides. Hand rubbed teak oil finish. – 6′ 2″ headroom with teak and holly sole throughout cabin area, all hatches and hatch openings in sole banded in solid teak. – White matte finish below counter height, teak cabinetry above. – Spun polyester wrapped foam cushions with choice of fabrics. – Zippered vinyl headliner for access to deck hardware and wiring. Forward – 6′ 6″ long and 78″ wide double V-berth with shelves on both sides and privacy curtain. – Three teak drawers under V-berth. – Slide out dining table stores beneath V-berth. Main Salon – Teak storage shelf with removable fiddle – both sides. – 6’10” settee berths, port and starboard with storage bins. – Teak navigators table with ice box under lift top. – Tilt out chart storage locker. – Enclosed head with teak shower seat, storage lockers and separate wet hanging locker. – 6′ 6″ long and 72″ wide double berth aft to port. – Hanging locker to starboard. – Two teak loop ceiling handrails. Galley – Gimbaled stainless steel two-burner propane stove w-oven. – Stainless steel safety bar-towel rack. – Large ice box with poured foam insulation, hinged lid and electric ice box pump with overboard discharge. – Polished stainless steel double sink with electric pump pressure fresh water & foot operated manual pump. – Food and dish storage lockers and drawers. Plumbing – Two water tanks with inspection ports, approx. 65 gal. (246 I) total. – Hot and cold pressure fresh water system for galley, head and shower. – Six gallon hot water heater from engine heat exchanger or shore power. – Bronze thru-hull fittings with UL approved bronze seacocks below the waterline, and bronze ball valves above waterline. – All thru hull hose connections are double hose clamped. – Marine head with holding tank and manual overboard pumpout. – Electric shower sump pump with overboard discharge. – Electric automatic bilge pump with switch. – 25 GPM manual bilge pump in cockpit operable by helmsman. Engine – Yanmar 3GM30F, three cylinder, 30 hp diesel with fresh water cooling and 55 amp alternator. Two blade solid bronze propeller. – Clear covered engine control panel in cockpit with tachometer, and engine condition indicators. – Engine hour meter below deck. – Removable 23 gallon (87 l) aluminum fuel tank with gauge and cleaning port- Mechanical fuel pump, electric back-up fuel pump. – Racor fuel filter with water separator. – Seawater strainer bulkhead mounted and water lift muffler system. Electrical – AC-DC master power control panel with AC ammeter, AC voltmeter, polarity test circuit, five AC circuit breakers, DC ammeter, battery condition monitor and nine DC circuit breakers. Panel is hinged for easy access. – Tinned copper wiring throughout. – 110 volt shore power system. – Two marine batteries (approx. 86 amps each). – Four position battery switch. – Four dome lights. – Six reading lights. – One adjustable chart light at navigation station. – Four 110 volt AC duplex receptacles with GFI protection. – RG-8U coaxial antenna cable led from masthead to navigators table. Cockpit – 7′ long seats with contoured seat backs and seat drains. – Coamings have two built-in winch handle boxes. – Three cockpit seat lockers for ample storage. – Vented propane storage in starboard coaming locker. – One 2.4 gallon – 10 pound propane tank (empty). – Two safety harness pad eyes. – Contoured helmsman’s seat. – Pedestal wheel steering with brake and offset stainless steel pedestal guard, engine throttle controls and emergency tiller. – Two 1-1-2″ drains in cockpit sole to seacocks for fast self-bailing. Spars and Rigging – Aluminum spars with two part linear polyurethane paint. – Four sheave masthead, external halyards, airfoil spreaders. – Combination bow – foredeck light on mast. Anchor light on masthead. – Internal conduit with VHF coax cable and wires. – Two single line reefs, reef horns at gooseneck. – Internal 2:1 outhaul, adjustable boom topping lift and cunningham. – 4:1 block and tackle boom vang. – 1-4″ – 1×19 s.s. standing rigging. Braided dacron running rigging. – Forged bronze open body turnbuckles. Pacific Seacraft 31 Optional Equipment – Shoal Draft Scheel Keel – Custom Hull Color – Cutter Rig with Single Handers Package- Full Batten Mainsail Upgrade.
Sails & Rigging
Primary winches moved inboasrd 2″ for full 360 degree winch handle clearance
Garhauer adjustable jib cars
Garhauer solid boom vang
All line led aft to cockpit
UK Tape Drive Full Batten Mainsail w/3 reef point
UK Tape Drive 135% roller reefing Genoa
UK Tape Drive 100% Rolling Furling Jib
Spare Darcon Mainsail
Cruising Spinnaker in Sock
Symmetrical Spinnaker in Turtle bag
Harken Code 0 roller furler
Forespar Spinnaker Pole mounted on mast with adjustable car
Port & Stbd Spinnaker Halyards on Masthead bale
Detachable Dyneema Inner Forestay with Wichard Babystay adjuster for easy deployment of Staysail
Wichard Backstay adjuster with Hayn-MOD failsafe insulators for future SSB Antenna
Custon Myneema upper & lower shrouds on Colligo Titanium mast fittings
Dyneema Running Backstays
Exterior
Factory Cutter Rig
Scheel Keel
Varnished Teak Dorade Boxes w/SS Dorades and custom SS Dorade Guards
Sunbrella covers for handrails and dorade boxes
Old Style PSC SS Portlights
Custom SS Arch
Converted to Tiller by Windward Yacht Center
Hydrovane Windvane with brackets for a Watt & Sea Generator
Bimini & Dodger with connector panel
Custom Bimini frame and cover for storage under arch
Cockpit spray curtains (mesh fabric for privacy but able to see out)
Mesh/Sunbrella inserts for Cockpit enclosure
Cockpit Shower
Cockpit upper lifelines replaced with 1″ SS tubing to boarding gate for added security
Edson outboard bracket
Engine

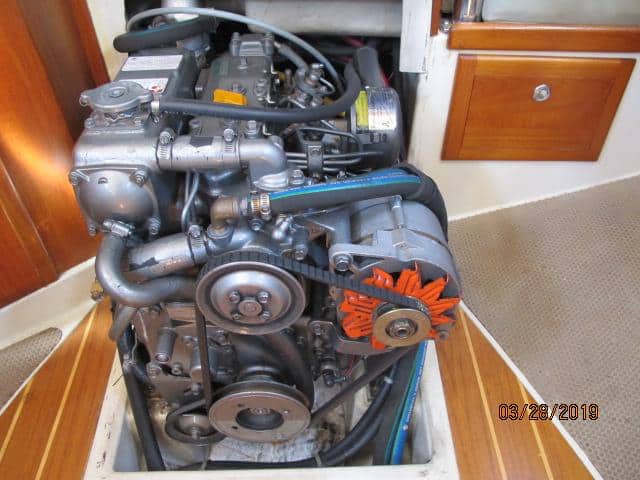

Yanmar 3GM30F
Speedseal raw water impeller cover
PSS Dripless Shaft
Max Prop 3-Bladed Feathering Prop
Cockpit engine panel moved out of cockpit well to coamin
Single lever shift/throttle Stbd
Anchoring
Lofrans Tigres Horizontal Electric Windlass
35lb CQR w/200′ 5/16 HT
Fortress F/X 16 Stern Anchor w/50′ 5/16 HT & 200′ Rode
Interior
Varnished teak Interior
Custom Ceiling panels for easy access to hardware and wiring
All Lighting replaced with LED
All interior cushions reupholstered w’Sunbrella Marine fabric
Teak Locker Cabinets Port & Stbd
Custom Radio Panel Stbd next to Nav Station w/ICOM radio and B&G triton Repeater
Electronics & Navigation
Simard/B&G NMEA 200 Electronics
Zeus3 9″ Chartplotter w/CMAP charts mounted on swingarm in Companionway
B&G Triton display Stbd
Raymarine ST70 multifunction display Port side cockpit (Integrated w/B&G instruments)\
Simard 4G broadband Radar on mast
Simard AC12 Autopilot computer w/RC42 rate Compass
Simard DD15 Mechanical pump drive & rudder reference in custom enclosure below cockpit – zero noise from the autopilot drive
Ritchie Venture SR-2 Bulkhead Compass
Simard Wind Vane Head
Simard Speed/Depth Transducers
Simard GPS Compass mounted on Cockpit Arch
SonicHub Marine Audio Server
ICOM M502 fixed mount VHF w/DSC
ICOM RAN Mic at Port Companionway
ICOM AIS Receiver
Shakespeare VHF Antenna
External fixed Iridium Satellite antenna mounted on Cockpit Arch w/lead to Stbd Salon Locker
LED Running lights
LED Masthead 3NM Anchor Light
Echomax EM180 Radar Reflector mounted on Mast above Radar
Electrical
2 Group 31 AGM House Batteries
1 Group 31 AGM Starting Battery
High Output Alternator (not Balmar)
Balmar Multistage Regulator
Link 10 Battery Monitor
Blue Sea 2-Bank Battery switchw/emergency cross-connect
130 Watt Kyocera Solar Panel
Blue Sky Solar Controller
Galvanic Isolator
Hear Interface Freedom 20 Inverter/Charger mounted inside wet locker
Remote Inverter/Charger control panel next to Nav Station

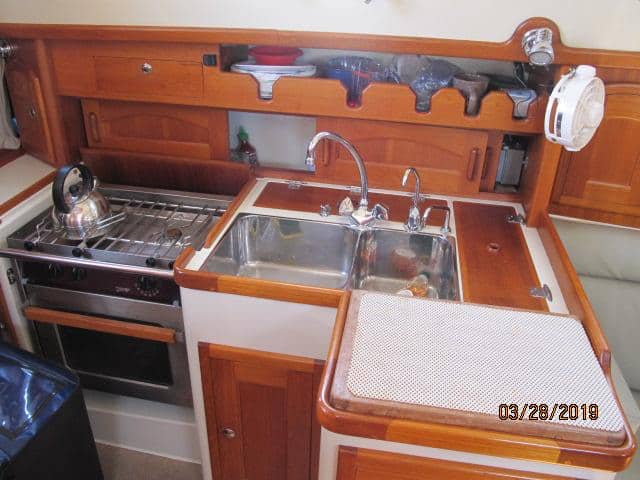

Galley
Sea Frost BD 12 Volt Refrigeration w/condenser on custom shelf in Stbd cockpit locker
Sea Frost Digital Thermostat Control
Seagull IV Water Filter
Manual saltwater footpump
2 burner Galley stove w/oven
Dual propane gas cylinders in overboard drained locker with solenoid & cross-connect
Magma BBQ w/propane gas hose quick disconnect
Remote propane gas control & detection mounted near Galley
Plumbing
Groco HF-B Manual Head
Holding tank w/inspection port
Deck & Overboard discharge
Holding Tank Monitor
Macerator pump w/circuit breaker at electric panel w/separate om/off switch inside wet locker
